Ajman Industrial 2, Ajman, United Arab Emirates
Products
Steel scaffolding manufactured and supplied from Ajman Industrial 2: cup lock standards, ledgers, H frames, intermediate transoms, and prop jacks and push-pull props, hot-dip galvanised or painted — for purchase or hire, with erection by our own teams if you need it.
Horizontal members that connect the standards and carry the working platform along a scaffold run.
Steel tube with welded end fittings at both ends, so a joint lands the same way along the whole run.
Used with standards and transoms, they complete the load path from the deck to the ground and keep the frame rigid.

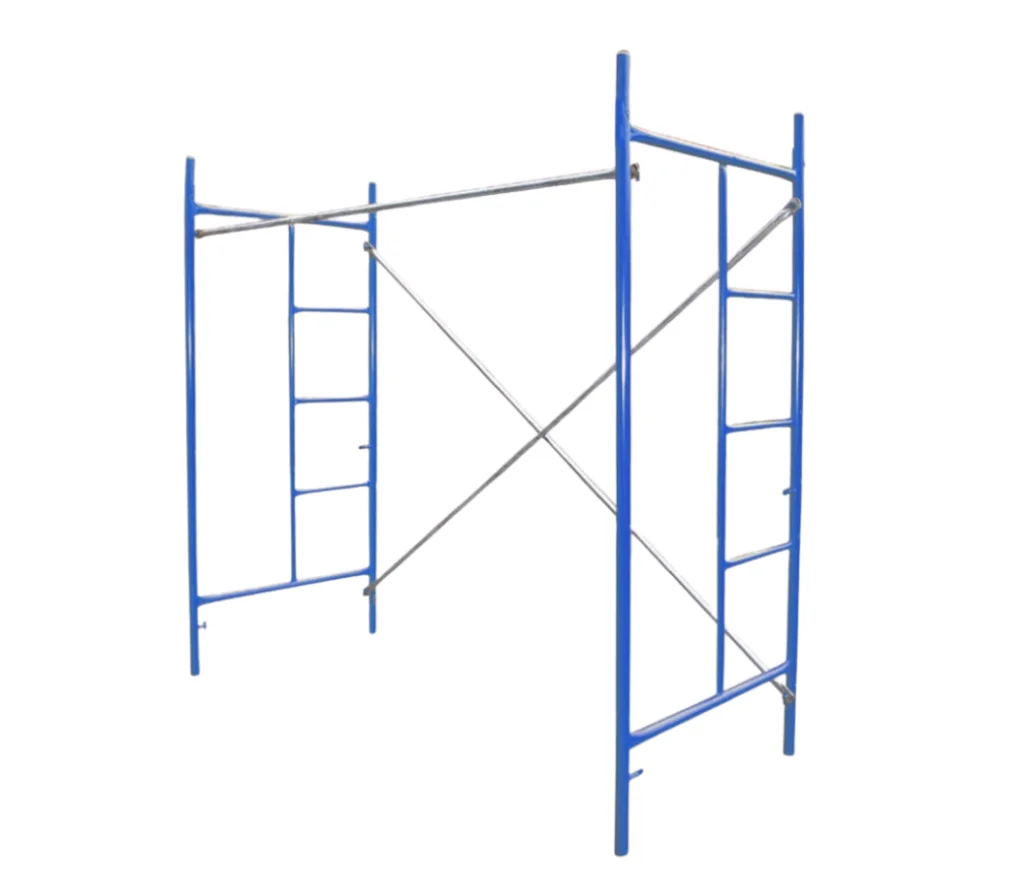

Prefabricated frame units for scaffold systems where speed of erection matters more than fully modular adjustment.
Heavy-duty structural steel sections with reinforced joints, supplied powder-coated or galvanised depending on the site.
Commonly specified for facade work and repetitive bay widths, where a frame system reduces assembly time per lift.
Intermediate transoms sit between the main transoms to add deck support where the platform spans are longer.
Steel tubing with secure end fittings transfers the deck load back into the standards and reduces deflection under footfall and stacked materials.
Used on working lifts that carry heavier loads or where boards need closer spacing.
A modular system standard with a fixed lower cup and a movable upper cup, so members lock at the node with a single hammer action.
Assembly is fast because no separate couplers are needed at each connection, and the node carries high load capacity.
Suited to access scaffolds and shoring where the same system has to be reconfigured between lifts.

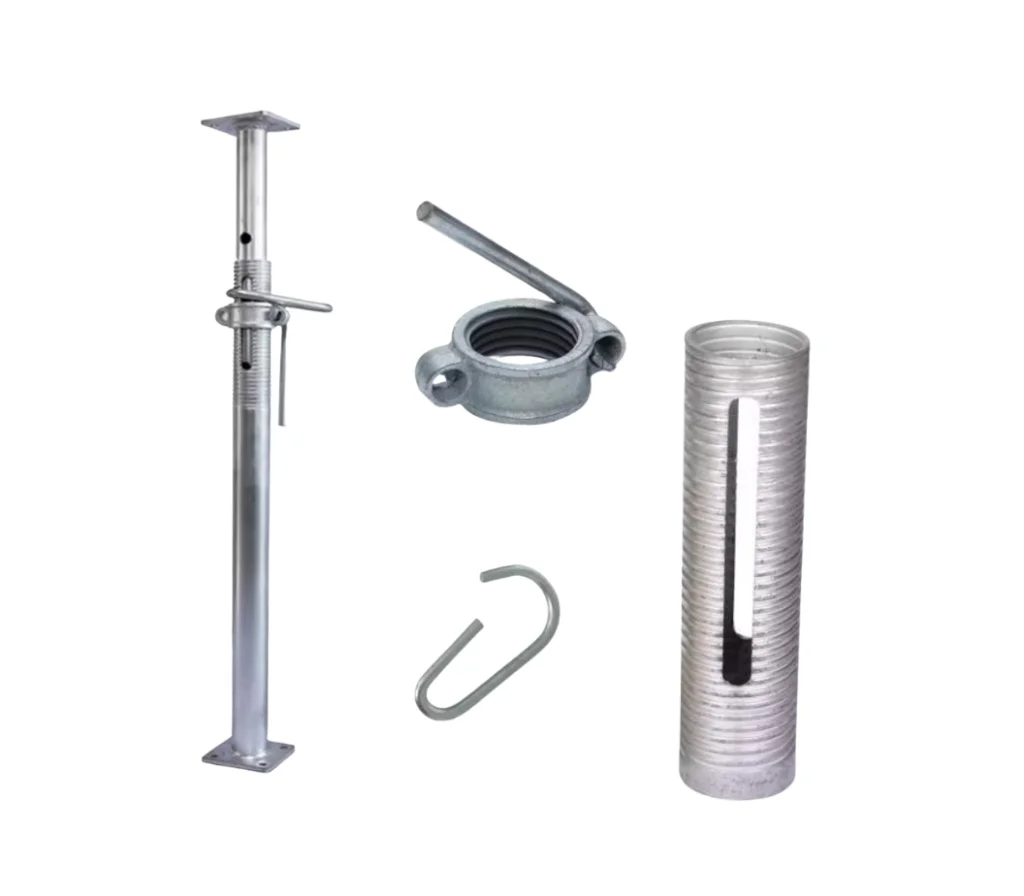

Adjustable props used vertically or diagonally to support formwork and to brace members under erection.
Precision threading gives fine height adjustment, and the corrosion-resistant finish suits repeated site use.
Supplied with the matching couplers and threaded tube shown in our product range.
From the catalogue
The steel items and sizes listed in the GH Scaffolds product catalogue. Cup lock standards, ledgers and transoms make up the system grid; frames, braces, jacks and props complete it.
| Item | Sizes or detail |
|---|---|
| Cup lock standards | 1.0 m, 1.5 m, 2.0 m, 2.5 m, 3.0 m |
| Ledgers | 0.50 m, 0.65 m, 0.75 m, 0.85 m, 0.95 m, 1.2 m, 1.3 m, 1.6 m, 1.8 m, 2.5 m |
| Transoms | 1.0 m, 1.2 m, 1.3 m, 1.6 m, 1.8 m, 2.5 m |
| Item | Sizes or detail |
|---|---|
| H frames | H frame, H frame (box) 2.8 m, H frame (double cross) |
| Cross braces | 3.2 m |
| Single braces | 3.0 m |
| Cantilever frames | 1.2 m, 1.3 m, 1.8 m |
| Bracing pipes, horizontal | 1.8 m, 2.5 m |
| Bracing pipes, diagonal | 2.0 m, 2.7 m |
| Item | Sizes or detail |
|---|---|
| Base jacks | Adjustable base support and levelling |
| Universal jacks | Adjustable support |
| U-head jacks | Top support for beams and formwork |
| Prop jacks | 1.0 m, 2.0 m, 3.0 m, 4.0 m, 5.0 m |
| Heavy-duty prop jack | 4.0 m |
| Push-pull props | 3 m, 4.5 m, 5 m, 6 m |
| Push-pull prop jack | 2.0 m |
Sizes as listed in the GH Scaffolds product catalogue. Availability and the exact configuration are confirmed when you request a quotation — and a size not listed here is worth asking about.
Enquire about this rangeServices
Supply is only part of the job: the same team can design the access, install it, support it while it is in use and take it down.
Scaffolding systems for hire or purchase from our warehouse in Ajman Industrial 2, with quantities matched to the programme and delivery to site.
On-site scaffold installation — erection, supervision during use, and dismantling by trained scaffolders.
Custom-engineered scaffold and formwork steelwork produced in our own warehouse, in steel and aluminium.
Also in the range
Questions
Yes. GH Scaffolds manufactures and supplies its steel scaffolding from Ajman Industrial 2, and components that standard systems do not cover are fabricated in-house to the project's drawings.
Cup lock standards, ledgers, transoms, H frames, cross and single braces, cantilever frames, bracing pipes, base, universal and U-head jacks, prop jacks and push-pull props. The range table on this page lists the sizes the product catalogue gives for each.
The catalogue lists cup lock standards at 1.0, 1.5, 2.0, 2.5 and 3.0 m, ledgers from 0.50 m to 2.5 m, and transoms at 1.0, 1.2, 1.3, 1.6, 1.8 and 2.5 m. Availability and the exact configuration are confirmed on the quotation.
Both finishes are in the range: the ledgers and the steel tubes are hot-dip galvanised, while other members carry a painted finish — the photographs show which is which.
Yes. The steel range is supplied for hire or for purchase, and both are quoted side by side so a one-off programme is not paying for material it will not use again.
Tell us the products, quantities and sizes you need, or send the drawings, and we will come back with a material list and a quotation — for purchase, hire or both. Enquiries from contractors, distributors and buyers outside the UAE are welcome.
