Products
Carbon steel scaffolding pipes and tubes, plus hot-dip galvanised (GI) pipes and tubes, supplied from our Ajman warehouse for scaffold, fabrication and structural work.
Carbon steel pipes and tubes held in the sizes used for scaffolding, framework and general fabrication.
Produced to dimensional accuracy so that couplers, fittings and threading match through a batch.
Specified for load-bearing applications where strength and straightness matter more than weight.

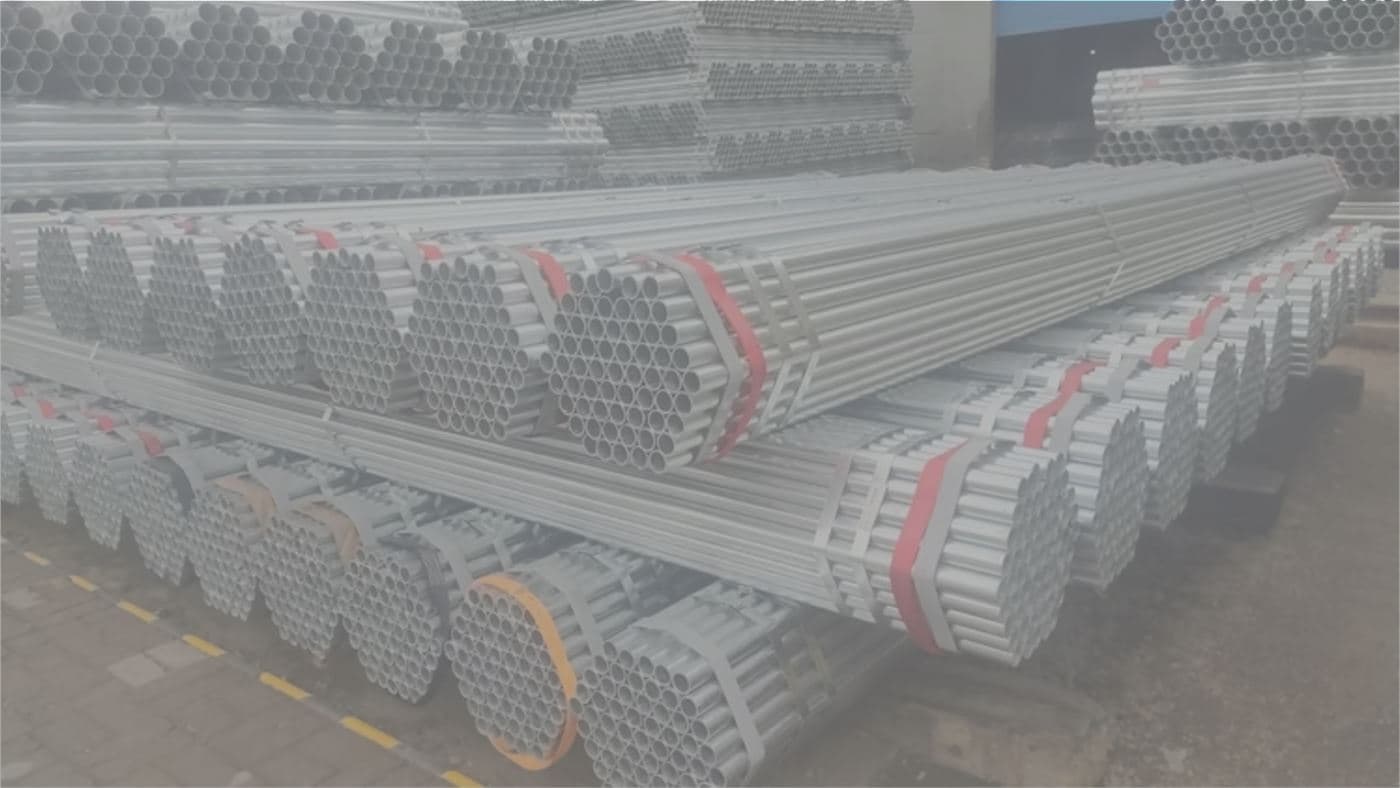

Hot-dip galvanised pipes and tubes for outdoor and industrial environments.
The zinc coating gives corrosion resistance for external access work, plant and coastal sites.
Held to consistent wall thickness so that rated capacities are repeatable across deliveries.
From the catalogue
The tubes and fittings listed in the GH Scaffolds product catalogue. Every tube is 48.3 mm outside diameter, the common scaffold tube size in the UAE market.
| Item | Sizes or detail |
|---|---|
| Steel scaffold tube, 1.8 mm wall | 6 m |
| Steel scaffold tube, 2.8 mm wall | 6 m |
| Steel scaffold tube, 3.2 mm wall | 3 m, 4 m, 6 m |
| GI scaffold tube, 3.2 mm wall | 2 m, 3 m, 4 m, 6 m |
| Item | Sizes or detail |
|---|---|

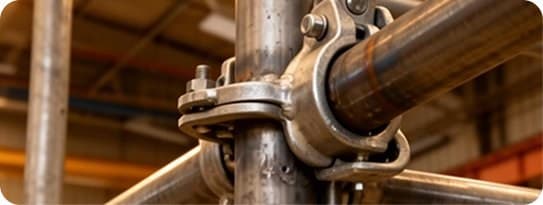

| Double couplers | Fixed 90° tube-to-tube connection |
| Swivel couplers | Angled connection for braces |
| Put lock / single couplers | Single-tube connection |
| Grinder couplers | Special-purpose fitting |
| Sleeve clamps | Inline joint for extending tube runs |
| Ladder clamps | For scaffold ladder arrangements |
| Jordan clamps | Listed clamp |
| Base plates | 150 × 150 mm |
| Pins with nut and bolt | Joining hardware |
Sizes as listed in the GH Scaffolds product catalogue. Availability and the exact configuration are confirmed when you request a quotation — and a size not listed here is worth asking about.
Enquire about this rangeServices
Supply is only part of the job: the same team can design the access, install it, support it while it is in use and take it down.
Scaffolding systems for hire or purchase from our warehouse in Ajman Industrial 2, with quantities matched to the programme and delivery to site.
Custom-engineered scaffold and formwork steelwork produced in our own warehouse, in steel and aluminium.
Also in the range
Questions
The steel pipes and tubes are carbon steel, specified for load-bearing work where strength and straightness matter. The GI range is hot-dip galvanised for external and industrial environments, where the zinc coating gives corrosion resistance.
Yes — pipes and tubes are cut and prepared in-house for the scaffold systems we supply, alongside the custom components made to the project's drawings.
The product catalogue lists 48.3 mm OD steel scaffold tube in 1.8 mm and 2.8 mm walls at 6 m, and in a 3.2 mm wall at 3, 4 and 6 m, plus GI scaffold tube in a 3.2 mm wall at 2, 3, 4 and 6 m. The full list is in the table on this page.
Grades are not published, and a different wall thickness, length or fabrication size is a question for the team: send the drawings or describe the application, and the material list states what is supplied.
Double and swivel couplers, put lock (single) couplers, sleeve clamps, ladder clamps, 150 × 150 mm base plates and pins with nut and bolt are among the fittings the catalogue lists.
Tell us the products, quantities and sizes you need, or send the drawings, and we will come back with a material list and a quotation — for purchase, hire or both. Enquiries from contractors, distributors and buyers outside the UAE are welcome.
